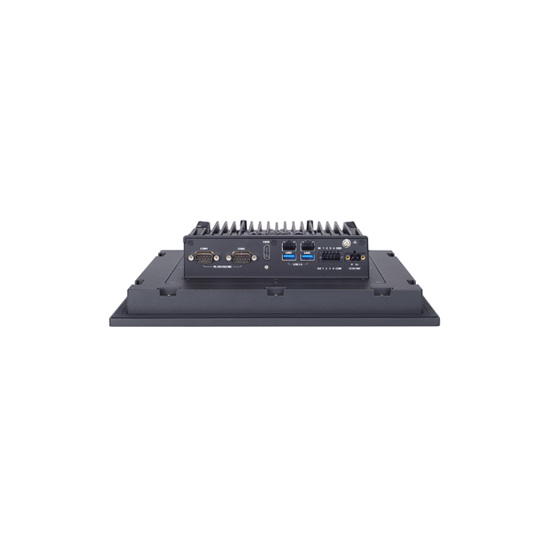

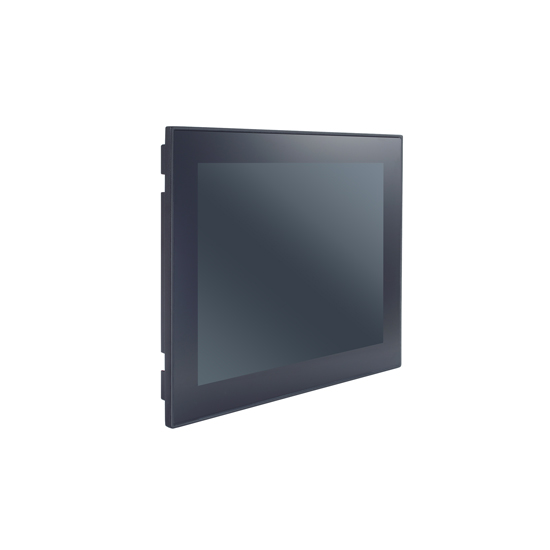

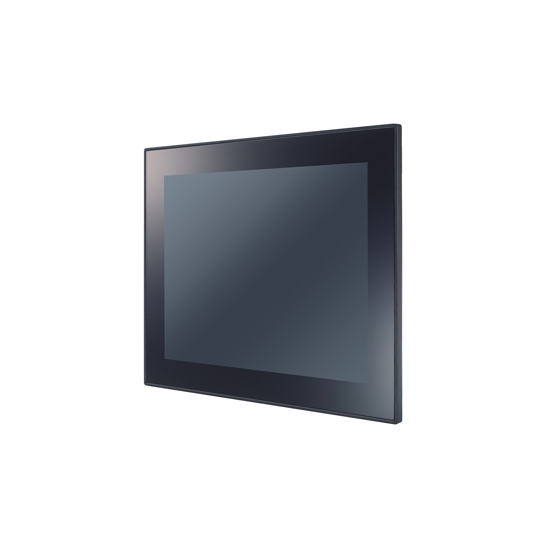

MOXA MPC-3120-E2-T Panel Computer










MOXA MPC-3120-E2-T Panel Computer
- Model: MPC-3120-E2-T
$0.00
Ex Tax: $0.00
MOXA MPC-3120-E2-T FEATURES
- 12.1-inch panel computer (1000 nits)
- CPU Intel Atom® Elkhart Lake dual-core x6211E
- 2 x 10/100/1000 Mbps ports (RJ45 connector)
- 2 x RS-232/422/485 Serial Ports (DB9 male connector)
- Metal body design (IP66 for front, IP20 for rear)
- 12/24 VDC input power range
- -30 to 60°C operating temperature

Over 40 Years in Business
Successful track record across Canada

Full Engineering Services
A powerhouse to provide consultation, training, and support

Strong Brand Portfolio
Top-notch products from superb global and local suppliers

Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
MOXA MPC-3120-E2-T INTRODUCTION
The MPC-3120 12.1-inch panel computers with Intel Atom® x6211E dual-core or x6425E quad-core processor deliver a reliable, durable, and versatile platform for use in industrial environments. With two software selectable RS-232/422/485 serial ports and two Gigabit Ethernet ports, the MPC-3120 panel computers support a wide variety of serial interfaces as well as high-speed IT communications, all with native network redundancy.
The MPC-3120 panel computers are designed for the -30 to 60°C temperature range, and come with a fanless, streamlined enclosure designed for highly efficient heat dissipation. This makes the computers reliable industrial platforms for harsh, hot, outdoor environments like oil and gas fields, or drilling platforms. The MPC-3120 also features a 400-nit or 1000-nit LCD panel offering a sunlight-readable, projected-capacitive, glove-friendly, multi-touch screen for excellent user experience in outdoor applications.
As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy the MOXA MPC-3120-E2-T Panel Computer online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the MPC-3120-E2-LB-T, MPC-3120-E4-LB-T, and MPC-3120-E4-T in the MOXA MPC-3120 Series.
MOXA MPC-3120-E2-T CERTIFICATIONS
Industrial Computer : Computer | |
CPU | Intel Atom® Elkhart Lake dual-core x6211E 1.30 GHz |
Supported OS | Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional (64-bit), Debian 11 (kernel 5.10), Ubuntu 22.04 LTS (kernel 5.1x), RHEL 9 (kernel 5.14) |
OS (pre-installed) | - |
System Memory | 8 GB DDR4 2400 MHz (32 GB max) |
Graphics Controller | Intel® HD Graphics |
Storage Slot | CFast slot x 1, SD slots x 1, SD 3.0 interface (SDHC/SDXC) |
Industrial Computer : Interface | |
LAN | 2 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) |
Digital Input/Output Channels | 4 x Digital inputs, 4 x Digital outputs |
Serial Ports | 2 x RS-232/422/485 port (software-selectable, DB9 male connector) |
USB | 2 x USB 3.0 hosts, type-A connectors |
Expansion Slot | - |
Industrial Computer : Display | |
Panel Size | 12.1 in (viewable image) |
Aspect Ratio | 4:3 |
Response Time | 25 ms |
Contrast Ratio | 1000:1 (typ.) |
Viewing Angles | 178°/178° |
Touch | Projective Capacitive touchscreen (PCAP) with Glove Support |
Pixels | 1024 x 768 |
Pixel Pitch (RGB) | 0.240 (H) x 0.240 (V) mm |
Light Intensity | 1000 nits |
Active Display Area | 245.76 (H) x 184.32 (V) mm |
Max. No. of Colors | 262k, 16.7M (8-bit/color) |
Industrial Computer : Serial Communication Parameters | |
Data Bits | 5, 6, 7, 8 |
Stop Bits | 1, 1.5, 2 |
Parity | None, Even, Odd, Space, Mark |
Flow Control | RTS/CTS, XON/XOFF, Automatic Data Direction Control (ADDC) for RS-485, RTS Toggle (RS-232 only) |
Baudrate | 50 bps to 115.2 kbps |
Industrial Computer : Serial Signals | |
RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
RS-485-2w | Data+, Data-, GND |
Industrial Computer : LED Indicators | |
System | Power x 1 |
LAN | 2 per port (10/100/1000 Mbps) |
Serial | - |
Industrial Computer : Power Requirements | |
Input Voltage | 12/24 VDC |
Power Consumption | 48 W, (max, including full USB loading) |
Industrial Computer : Physical Characteristics | |
Dimensions | 315 x 220 x 75.7 mm (12.40 x 8.66 x 2.98 in) |
Housing | Metal |
Operating temperature | -30 to 60°C (-22 to 140°F) |
Storage Temperature | -40 to 70°C (-40 to 158°F) |
Relative humidity | 5 to 95% (non-condensing) |
Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV; Environmental Testing: IEC 60068-2-1, DNV-CG-0339, IEC 60068-2-1, IEC 60945, IEC 60068-2-2, DNV-CG-0339, IEC 60068-2-2, IEC 60945, IEC 60068-2-30, DNV-CG-0339; Hazardous Locations: ATEX Zone 2, Class I Division 2, IECEx Zone 2; Maritime: DNV-CG-0339, IEC 60945, IACS E10; Safety: IEC 62368-1, UL 62368-1; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, DNV-CG-0339, IEC 60945, IEC 60068-2-64, DNV-CG-0339; Green Product: RoHS, CRoHS, WEEE; IP66; IP20 |
Weight | 2,900 g (6.39 lb) |
Mounting | Panel mounting |
