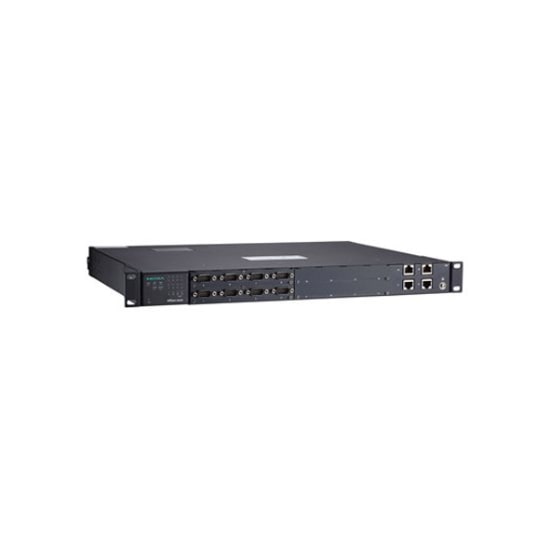

MOXA NPort S9650I-8-2HV-E-T Serial to Ethernet Device Server
  • Model: NPort S9650I-8-2HV-E-T
Moxa Moxa
Based on 0 reviews. - Write a review
$0.00
Ex Tax: $0.00
Add to Cart
Buy Now Enquire Now
Add to Wish List Compare this Product

MOXA NPort S9650I-8-2HV-E-T FEATURES

  • 8 x RS-232/422/485 Serial ports
  • 4 x RJ45 Ethernet Port Connector
  • DB9 Male Serial Port Connector
  • 88 to 300 VDC or 85 to 264 VAC input power
  • Metal body
  • -40 to 85°C operating temperature
  • Supports IEC 61850 MMS protocol
  • Security features based on IEC 62443/NERC CIP


Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

MOXA NPort S9650I-8-2HV-E-T INTRODUCTION

The NPort S9450I Series 4-port RS-232/422/485 device servers, which come with a built-in full-function managed Ethernet switch, are designed specifically for the harsh environmental conditions found in electrical substations. With both fiber and wired Ethernet ports supported, the combination of device server and Ethernet switch gives users the ability to easily install, manage, and maintain the NPort S9450I itself, as well as attached serial devices.

The NPort S9450I Series supports a high level of surge protection to prevent damage from the types of power surges and EMI one finds in electrical substations and industrial automation applications. Combined with a -40 to 85°C operating temperature range and galvanized steel housing, the NPort S9450I is suitable for a wide range of industrial environments.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA NPort S9650I-8-2HV-E-T Serial to Ethernet Device Server online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the Port S9650I-8F-2HV-E-T and NPort S9650I-8F-2HV-MSC-T models in the MOXA NPort S9650I Series.

MOXA NPort S9650I-8-2HV-E-T CERTIFICATIONS



Serial-to-Ethernet : Interface
10Mbps RJ-45 Ports No
10/100Mb RJ45 (Megabit) Ports Yes: 4 Ports
RS-232 Ports No
RS-422/485 Ports No
RS-232/422/485 Ports Yes: 8 Ports
Serial-to-Ethernet : Serial Port Specifications
Serial connection type DB9-M
Serial Communication Parameters Data Bits : 5, 6, 7, 8 and Stop Bits : 1, 1.5, 2 and Parity : None, Even, Odd, Space, Mark
Flow Control None, RTS/CTS, XON/XOFF
Data transfer speed ( Baudrate ) 50 bps to 921.6 kbps (supports non-standard baudrates)
Protection against electrostatic discharge 4KV
Electrical isolation 2 kV
Serial-to-Ethernet : Communication details
Wireless Standards No
Maximum data transfer speed No
Maximum direct range No
Serial-to-Ethernet : General
Management DHCP Client, DHCP Option 82, HTTP, IEC 61850 MMS, IPv4, LLDP, Port Mirror, RARP, RMON, SMTP, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, Web Console
MTBF 224,670 hrs
Compatible operating systems -
Fixed TTY Drivers SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5. x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Serial-to-Ethernet : Power Requirements
Power Consumption (Output Adapter) -
Serial-to-Ethernet : Security
Security HTTPS/SSL, Local Account Accessibility, TACACS+, RADIUS, SSH
Encryption -
Serial-to-Ethernet : Ethernet Interface
Network Protocols Modbus TCP Server (Slave), DNP3 TCP Outstation (Slave)
Serial-to-Ethernet : Features and capabilities
Display No
Keyboard No
The automatic restart (reset) Yes : WDT
Alarm feature Yes: 1 A @ 24 VDC
Serial-to-Ethernet : Standards and Protocols
Network Protocols Modbus TCP Server (Slave), DNP3 TCP Outstation (Slave)
Serial-to-Ethernet : Physical Characteristics
Dimensions 457 x 32 x 330 mm (18 x 1.25 x 12.99 in)
Safety EN 61010-2-201, UL 61010-2-201
EMC EN 61000-6-2/-6-4
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11
Marine No
Medical No
LAN port Protection against magnetic fields 1.5KV
Housing Metal
Operating Temperature -40 to 85°C (-40 to 185°F)
Storage Temperature -40 to 85° C
Altitude No
Operation Humidity 5 to 95% (non-condensing)
