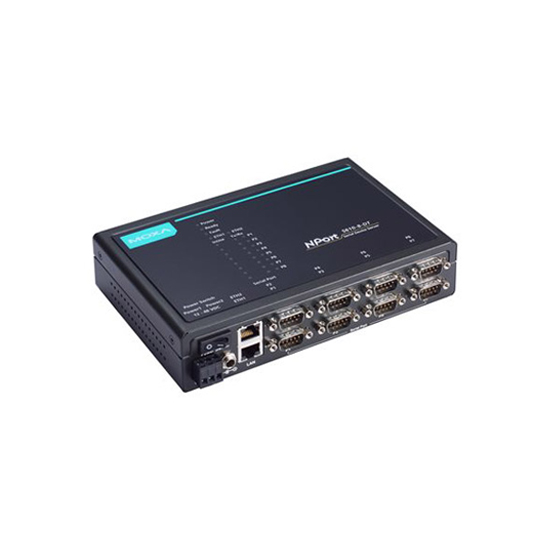

MOXA NPort 5610-8-DT-T Serial to Ethernet Device Server

Tags: Industrial Edge Connectivity , Serial Device Servers , General Device Servers , Serial to Ethernet Device Servers , Serial to Ethernet Converters , NPort , Converters , MOXA NPort 5600-DT Series

Model: NPort 5610-8-DT-T

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

MOXA NPort 5610-8-DT-T FEATURES

2 x 10/100Mbps T(x) ports and 8 x RS-232 Serial ports
12 to 48 VDC dual power inputs
Metal body
-40 to 75°C operating temperature

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA NPort 5610-8-DT-T INTRODUCTION

NPort 5600-8-DT device servers can conveniently and transparently connect 8 serial devices to an Ethernet network, allowing you to network your existing serial devices with only basic configuration. You can both centralize the management of your serial devices and distribute management hosts over the network. Since the NPort 5600-8-DT device servers have a smaller form factor compared to our 19-inch models, they are a great choice for applications that need additional serial ports, but for which mounting rails are not available.

The NPort 5650-8-DT device servers support selectable 1 kilo-ohm and 150 kilo-ohms pull high/low resistors and a 120-ohm terminator. In some critical environments, termination resistors may be needed to prevent the reflection of serial signals. When using termination resistors, it is also important to set the pull high/low resistors correctly so that the electrical signal is not corrupted. Since no set of resistor values is universally compatible with all environments, NPort 5600-8-DT device servers use DIP switches to allow users to adjust termination and pull high/low resistor values manually for each serial port.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA NPort 5610-8-DT-T Serial to Ethernet Device Server online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the NPort 5610-8-DT model in the MOXA NPort 5600-DT Series.

MOXA NPort 5610-8-DT-T CERTIFICATIONS

serial-to-ethernet : Interface
10Mbps RJ-45 Ports	No
10/100Mb RJ45 (Megabit) Ports	Yes: 2 Ports
RS-232 Ports	Yes: 8 Ports
RS-422/485 Ports	No
RS-232/422/485 Ports	No
serial-to-ethernet : Serial port specifications
Serial connection type	DB9 male
Serial Communication Parameters	Data Bits : 5, 6, 7, 8 and Stop Bits : 1, 1.5, 2 and Parity : None, Even, Odd, Space, Mark
Flow Control	RTS/CTS, DTR/DSR, XON/XOFF
Data transfer speed ( Baudrate )	Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
Protection against electrostatic discharge	-
Electrical isolation	No
serial-to-ethernet : Communication details
Wireless Standards	No
Maximum data transfer speed	No
Maximum direct range	No
serial-to-ethernet : General
Management	DHCP Client, HTTP, IPv4, SMTP, SNMPv1, Telnet, ARP, Rtelnet, DNS, BOOTP, UDP, TCP/IP, ICMP
MTBF	836,374 hrs
Compatible operating systems	Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers	SCO UNIX, SCO OpenServer, SCO UnixWare 7, Sun Solaris 10, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers	Kernel version: 2.4.x, 2.6.x, 3.x, 4.x
serial-to-ethernet : Power Requirements
Power Consumption (Output Adapter)	-
serial-to-ethernet : Security
Security	No
Encryption	No
serial-to-ethernet : Features and capabilities
Display	No
Keyboard	No
The automatic restart (reset)	Yes : WDT
Alarm feature	No
serial-to-ethernet : Standards and protocols
Network protocol	DHCP Client, HTTP, IPv4, SMTP, SNMPv1, Telnet, ARP, Rtelnet, DNS, BOOTP, UDP, TCP/IP, ICMP, SNTP
serial-to-ethernet : Physical Characteristics
Dimensions	(with ears): 229 x 46 x 125 mm (9.01 x 1.81 x 4.92 in); (without ears): 197 x 44 x 125 mm (7.76 x 1.73 x 4.92 in); (with DIN-rail kit on bottom panel): 197 x 53 x 125 mm (7.76 x 2.09 x 4.92 in)
Safety	UL 60950-1
EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11 DIPs
Marine	No
Medical	No
LAN port Protection against magnetic fields	1.5 kV (built-in)
Housing	Metal
Storage Temperature	-40 to 75°C
Altitude	-
Operation Humidity	5 to 95% (non-condensing)
