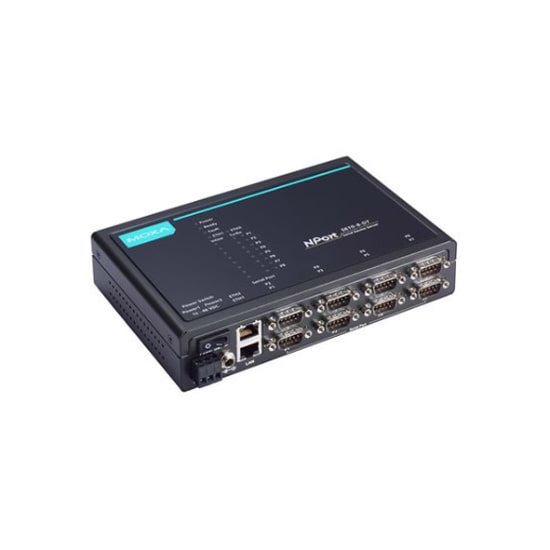

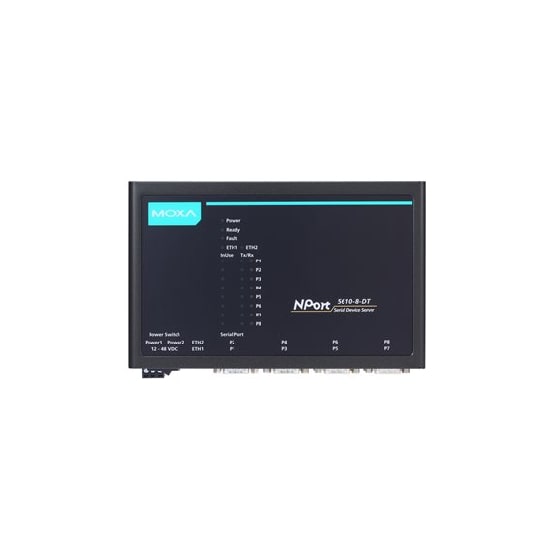

MOXA NPort 5650I-8-DT-T Serial to Ethernet Device Server

Tags: Industrial Edge Connectivity , Serial Device Servers , General Device Servers , Serial to Ethernet Device Servers , Serial to Ethernet Converters , Industrial Serial Connectivity , MOXA 5600-DT Series

Model: NPort 5650I-8-DT-T

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

MOXA NPort 5650I-8-DT-T FEATURES

2 x 10/100Mbps T(x) ports and 8 x RS-232/422/485 Serial ports
Serial Interface Connector: DB9 Male
12 to 48 VDC input power
Metal body
2 kV Isolation
-40 to 75°C operating temperature

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA NPort 5650I-8-DT-T INTRODUCTION

NPort 5600-8-DT device servers can conveniently and transparently connect 8 serial devices to an Ethernet network, allowing you to network your existing serial devices with only basic configuration. You can both centralize management of your serial devices and distribute management hosts over the network. Since the NPort 5600-8-DT device servers have a smaller form factor compared to our 19-inch models, they are a great choice for applications that need additional serial ports, but for which mounting rails are not available.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA NPort 5650I-8-DT-T Serial to Ethernet Device Server online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the NPort 5650I-8-DT and NPort 5610-8-DT models in the MOXA 5600-DT Series.

MOXA NPort 5650I-8-DT-T CERTIFICATIONS

serial-to-ethernet : Interface
10Mbps RJ-45 Ports	No
10/100Mb RJ45 (Megabit) Ports	Yes: 2 ports
RS-232 Ports	No
RS-422/485 Ports	No
RS-232/422/485 Ports	Yes: 8 Ports
serial-to-ethernet : Serial port specifications
Serial connection type	DB9 male
Serial Communication Parameters	Data Bits: 5, 6, 7, 8 and Stop Bits: 1, 1.5, 2 and Parity: None, Even, Odd, Space, Mark
Flow Control	RTS/CTS, DTR/DSR, XON/XOFF
Data transfer speed ( Baudrate )	Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
Protection against electrostatic discharge	-
Electrical isolation	Yes: 2kV
serial-to-ethernet : Communication details
Wireless Standards	No
Maximum data transfer speed	No
serial-to-ethernet : General
Management	Serial Console, Telnet Console, Web Console (HTTP/HTTPS), Windows Utility
MTBF	836,374 hrs
Compatible operating systems	Windows 11/10/8.1/8/7/Vista/XP/ME/98/95, Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003, Windows Embedded CE 6.0/5.0, Windows XP Embedded
Fixed TTY Drivers	macOS Versions: 11.x, 10.12 to 10.15, SCO UNIX, SCO OpenServer, SCO UnixWare 7, Sun Solaris 10, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers	Kernel versions 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
serial-to-ethernet : Power Requirements
Power Consumption (Output Adapter)	-
Input Voltage	12 to 48 VDC
Input Current	1066 mA @ 12 VDC
serial-to-ethernet : Security
Security	Authentication: Local database
Encryption	HTTPS, AES-128, RSA-1024, SHA-1, SHA-256
serial-to-ethernet : Ethernet Interface
Network Protocols	ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, Rtelnet, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP
serial-to-ethernet : Features and capabilities
Display	No
Keyboard	No
The automatic restart (reset)	Yes: WDT
Alarm feature	Built-in buzzer and RTC (real-time clock)
serial-to-ethernet : Standards and protocols
Data transfer protocol	-
serial-to-ethernet : Physical Characteristics
Dimensions	(with ears): 229 x 46 x 125 mm (9.01 x 1.81 x 4.92 in); (without ears): 197 x 44 x 125 mm (7.76 x 1.73 x 4.92 in); (with DIN-rail kit on bottom panel): 197 x 53 x 125 mm (7.76 x 2.09 x 4.92 in)
Safety	UL 60950-1, IEC 62368-1
EMC	EN 55032/35
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 0.5 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11
Marine	No
Medical	No
LAN port Protection against magnetic fields	1.5 kV (built-in)
Housing	Metal
Storage Temperature	-40 to 75°C (-40 to 167°F)
Altitude	-
Operation Humidity	5 to 95% (non-condensing)
