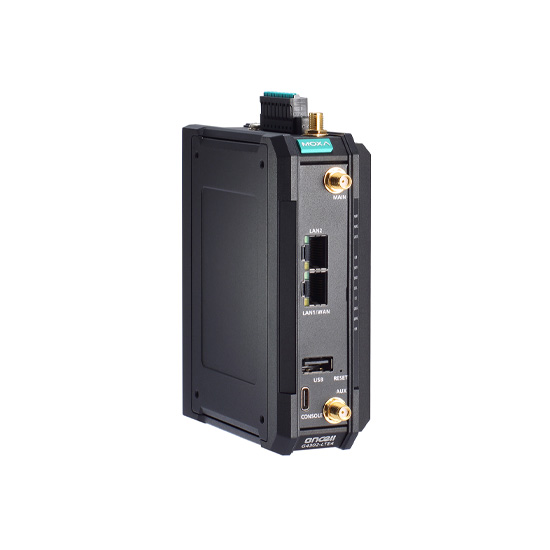

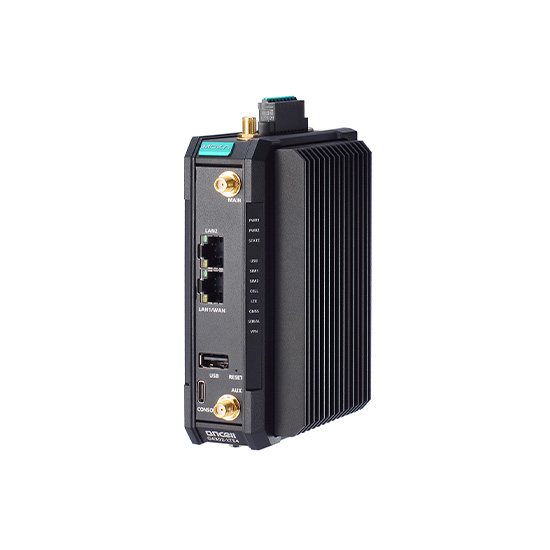

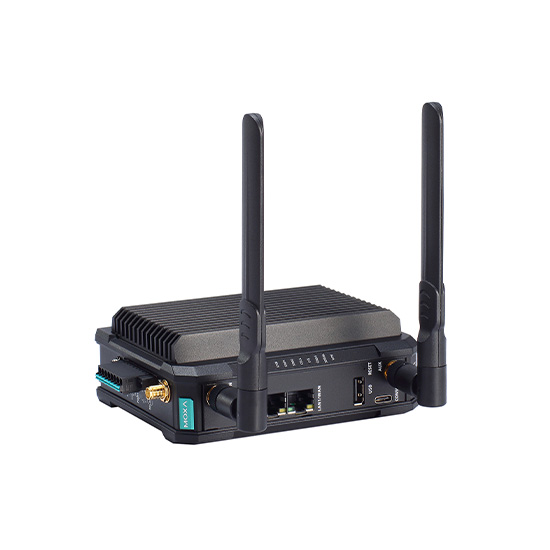

MOXA OnCell G4302-LTE4-EU Industrial Cellular Router

MOXA OnCell G4302-LTE4-EU Industrial Cellular Router
  • Model: OnCell G4302-LTE4-EU
$0.00
Ex Tax: $0.00

MOXA OnCell G4302-LTE4-EU FEATURES

  • 2 x 10/100/1000BaseT(X) Ports with managed Layer 2 switch functions
  • 1 x USB 2.0 Type A
  • 1 x RS-232/422/485 Serial Port
  • Support for Australia Cellular Bands
  • Supports MXsecurity and MXview One for distributed systems and local site management
  • Cybersecurity features based on IEC 62443-4-2
  • Dual Power Inputs for Power Redundancy
  • -30 to 70°C Operating Temperature


Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

MOXA OnCell G4302-LTE4-EU INTRODUCTION

The OnCell G4302-LTE4 Series is a reliable and powerful secure cellular router with global LTE coverage. This router provides reliable data transfers from serial and Ethernet to a cellular interface that can be easily integrated into legacy and modern applications. WAN redundancy between the cellular and Ethernet interfaces guarantees minimal downtime, while also providing extra flexibility. To enhance cellular connection reliability and availability, the OnCell G4302-LTE4 Series features GuaranLink with dual SIM cards. Moreover, the OnCell G4302-LTE4 Series features dual power inputs, high-level EMS, and a wide operating temperature for deployment in demanding environments. Through the power management function, administrators can set up schedules to fully control the OnCell G4302-LTE4 Series’ power usage and minimize power consumption when idle to save cost.

Designed for robust security, the OnCell G4302-LTE4 Series supports Secure Boot to ensure system integrity, multi-layer firewall policies for managing network access and traffic filtering, and VPN for secure remote communications. The OnCell G4302-LTE4 Series complies with the internationally recognized IEC 62443-4-2 standard, making it easy to integrate these secure cellular routers into OT network security systems.


As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA OnCell G4302-LTE4-EU Industrial Cellular Router online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the OnCell G4302-LTE4-EU-T and OnCell G4302-LTE4-AU models in the MOXA OnCell G4302-LTE4 Series.

MOXA OnCell G4302-LTE4-EU CERTIFICATION



3G Modem : Interface
Memory card slot for storage No
MicroUSB No
SIM card slot 2 Push-eject tray-type slots
WAN Yes
LAN Yes
USB 1 USB Type-A Port
FXO / FXS No
DSL No
Digital Input and Output 1 channel, -30 to +3 V for state 0, +13 to +30 V for state 1
Serial port Yes: 1 RS-232/422/485
Alert Output No
Band Options LTE B1 (2100 MHz) / B3 (1800 MHz) / B7 (2600 MHz) / B8 (900 MHz) / B20 (800 MHz) / B28 (700 MHz) UMTS/HSPA B1 (2100 MHz) / B8 (900 MHz) GSM/GPRS/EDGE 900 MHz / 1800 MHz
3G Modem : Radio specifications
2G , 3G , 4G Standards LTE CAT 4, HSPA, UMTS, EDGE, GPRS, GSM
Radio Connection type GuaranLink
4G / 3G / 2G Antenna 2 SMA female
WiFi Gain Antenna No
4G / 3G / 2G Gain Antenna -
Maximum WiFi data transfer speed -
Maximum data transfer speed of 2G -
Maximum data transfer speed of 3G -
Maximum data transfer speed of 4G -
WiFi Radio Frequency No
2G network frequency -
3G network frequency UMTS/HSPA B1 (2100 MHz) / B8 (900 MHz)
4G network frequency LTE B1 (2100 MHz) / B3 (1800 MHz) / B7 (2600 MHz) / B8 (900 MHz) / B20 (800 MHz) / B28 (700 MHz)
Number of radio channels -
Maximum direct range -
Maximum WiFi Output Power -
Radio Channel Bandwidth -
3G Modem : Software Specifications
VPN -
Firewall Filter: DDoS, Ethernet protocols, ICMP, IP address, MAC address, Ports
WPS No
Serial performance -
3G Modem : General
Operating mode LTE router
Management GuaranLink, Power Management, Back Pressure Flow Control, LLDP, Syslog, Wireless Search Utility, MXview One, MXconfig, MXsecurity, MRC Quick Link2
3G Modem : Standards and protocols
Protocols SNTP Client, HTTPS, NAT, GuaranLink, DHCP server, DDNS, ARP, Telnet, TCP/IP, UDP, SMTP, Remote SMS Control, Syslog, SNMPv1/v2c/v3, Serial Console, Telnet Console, Web Console, Wireless Search Utility
Serial port standard RS-232/422/485
3G Modem : Features and capabilities
3G phone calls No
Create and edit phonebook -
Send and receive SMS Yes
3G Modem : Security
Security and Encryption DES, 3DES, AES-128, AES-192, AES-256
Authentication MD5 and SHA (SHA-256), RSA (key size: 1024-bit, 2048-bit), Pre-shared Key or X.509 v3 certificate
Serial security -
SSID -
3G Modem : Power Requirements
Power Consumption (Output Adapter) 7.6 W (typ.) 11.52 W (max.)
POE Support No
Battery No
Type of power input Terminal block
3G Modem : Buttons
Power button No
3G / WAN button No
WPS button No
Reset Yes
3G Modem : LED Indicators
Phone No
SMS No
WLAN No
4G / 3G / 2G Yes
Power Yes
Internet Yes
Wireless Signal Strength -
WPS No
LED Indicators PWR1, PWR2, STATE, USB, SIM1, SIM2, CELL, LTE, GNSS, SERIAL, VPN
DSL Modem : LED Indicators
LAN Yes: 2 RJ45 10/100Mbps Ports
3G Modem : Physical Characteristics
Dimensions 125 x 46.2 x 100 mm (4.92 x 1.82 x 3.94 in)
Weight 610 g (1.34 lb)
Operating Temperature -10 to 55°C (14 to 131°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Type of Use Harsh environment
Standards and Certifications EMC, EMI, EMS, Freefall, ATEX, IECEx, Class I Division 2, FCC, PTCRB, EN 303 413, EN 301511, EN 301908-1/-2/-13, EN 301 489-1/-19, EN 301 489-1/-52, Safety, Shock, Vibration
