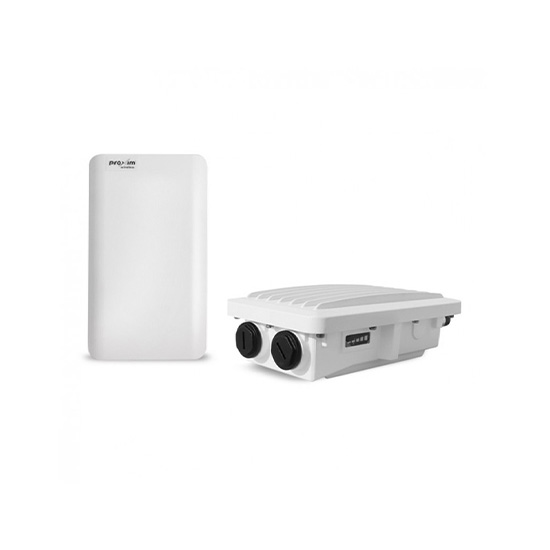

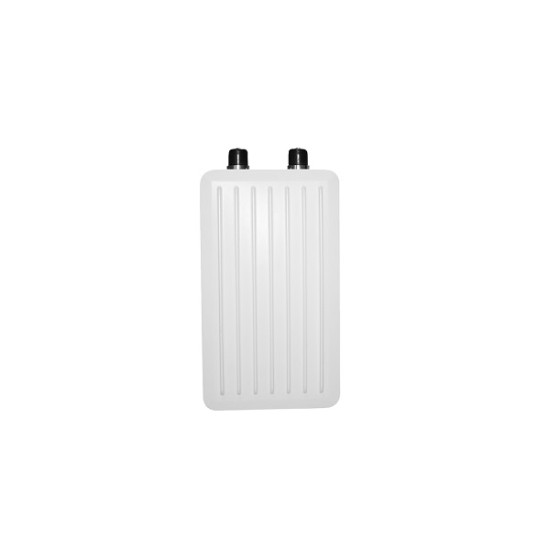

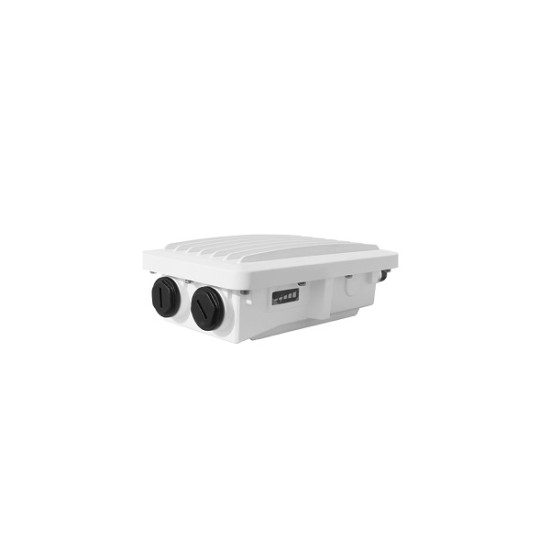

Proxim Tsunami MP-10250-CPE-WD Point-to-Multipoint Radio
- Model: Tsunami MP-10250-CPE-WD
Introduction
The Proxim Multipoint 10200 CPE/CPA is an ideal solution for large-scale wireless deployments and provides excellent price/performance for any organization in need of medium to high-density point-to-multipoint networks.
The Multipoint 10200 CPE/CPA enables seamless roaming up to 295 km/h (185 mph) for use in mobility applications such as the provision of Internet access or video surveillance on trains, trams, and busses.
This Customer Premises Equipment also features a carrier-grade prioritization platform supporting multiple service classes and is able to prioritize voice, video, and data applications to enable granular management of customer service features.
High Value, Long Service Life
The combination of high reliability, license-free frequency bands, and guaranteed compatibility with past, current, and future Proxim base station models, ensures a long service life, and an excellent return on investment.
Certifications
Features
- IP67
- MIMO 2x2
- N-Type Connectors
- One auto MDI-X RJ45 10/100/1000Mbps Ethernet with PoE in & Data
- Connects to all existing Tsunami® MP-10200, MP-10100, MP-8200, MP-820 and MP-830 product families
- Fully integrates within ProximVision® Advanced, Proxim’s Cloud Based Carrier Management System and Controller
- Built-in network protocols for Bridging, Routing, and Gateway functionality
Point-to-Multipoint Radio : Interfaces | |
Wired Ethernet | One auto MDI-X RJ45 10/100/1000Mbps Ethernet with PoE in & Data |
Wireless Protocol | WORP® (Wireless Outdoor Router Protocol) |
Point-to-Multipoint Radio : Antenna | |
Beam Width | - |
Receive Gain | - |
Transmit Gain | - |
Point-to-Multipoint Radio : Radio Specifications | |
TX Power | Up to 28 dBm (dual chain) |
MIMO | 2x2:2 |
Modulation | OFDM with BPSK, QPSK, QAM16, QAM64, QAM256 |
Frequency | 4.900 – 5.925 GHz (Subject to Country Regulations) |
Channel Size | 20 MHz and 40 MHz, Upgradeable to 80 MHz (±5ppm channel accuracy) |
Data Rate | MCS 0 to 9 with Dynamic Data Rate Selection |
TX Power Control | 0 - 27 dB, in 1 dB steps. Automatic TPC with configurable EIRP limit |
Other | Syslog, sFlow™ agent, SNTP and local time, Spectrum analyzer |
Point-to-Multipoint Radio : Management | |
Remote | Telnet and SSH, Web GUI and SSL/TLS1.2, TFTP, SNMPv3 |
SNMP | SNMP v1-v2c-v3, RFC-1213, RFC-1215, RFC-2790, RFC-2571, RFC-3412, RFC-3414, Private MIB |
Point-to-Multipoint Radio : Standards and Protocols | |
Synchronization | Pass-trough SyncE and Precision Time Protocol (IEEE 1588v2) Ethernet Synchronization |
Point-to-Multipoint Radio : Security | |
Encryption | AES 128, upgradeable to AES 256 |
Authentication | Bridging, Routing (RIP v2 and IP tunneling) |
Point-to-Multipoint Radio : Network | |
Modes | Bridging, Routing (RIP v2 and IP tunneling) |
IP Stack | IPv4 and IPv6 simultaneously |
Gateway Features | DHCP Server & relay, NAT with Std ALGs, PPPoE end point with Proxy DNS |
Point-to-Multipoint Radio : Power requirements | |
Input Power | 36 to 57 VDC via Ethernet port(Power over Ethernet),12 VDC via Access port, Power should not be provided simultaneously on both ports |
Output Power | 12 VDC on Access port |
Power Consumption | 11.5 Watt typical, 15.5 Watt maximum |
Point-to-Multipoint Radio : Physical characteristics | |
Safety | UL 60950, CAN/CSA-C22.2 No. 60950, IEC 60950, EN 60950 (part -1 and -22) |
Temperature | OPERATING : -40º to 60ºC, STORAGE : -50º to 70ºC |
Humidity | 100% relative humidity |
IP Rating | IP67 |
Dimensions Packaged | 11.81x10.83x5.31 in |
Dimensions Unpackaged | 4.96x8.62x2.58 in |
Weight (PACKAGED) | 7.27 lbs (3.3 Kg) |
Weight (UNPACKAGED) | 2.10 lbs (0.950 kg) |
Standards and Certifications | USA: FCC 90Y + 15E (UNII 15.247), Canada: IC RSS 102 + RSS 111 + RSS 247, Europe: RED EN 301 489-1 + EN 301-489-17 + EN 301 893 + EN 302 502, Railway: EN 50155 + EN 50121 + EN 61373 |
Wind Loading | 180 km/h (112.5 mph) |
Point-to-Multipoint Radio : Package Checklist | |
Package Contents | One Tsunami® MP-10250-CPE with integrated dual polarized antenna Or One Tsunami® MP-10200-CPA with two N-type connectors, One power injector and country specific power cord, One Connector weatherproofing kit (Includes all recommended weatherproofing material), One Wall / Pole mounting kit (MP-10250-CPE) Or One Pole mounting kit (MP-10200-CPA), One Grounding kit, One Quick Installation Guide |
Point-to-Multipoint Radio : General | |
MTBF | over 250 000 hours |
