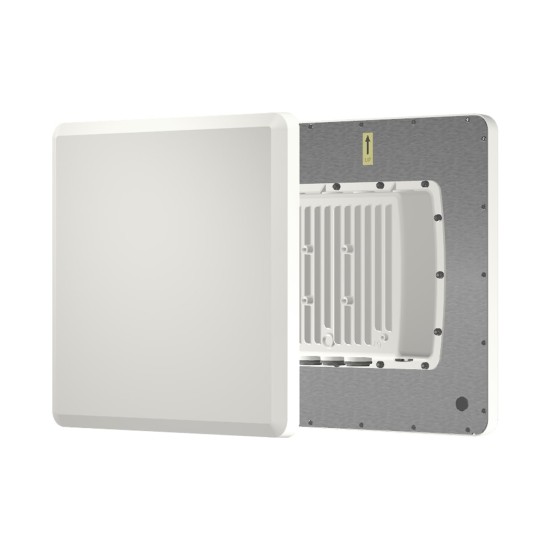

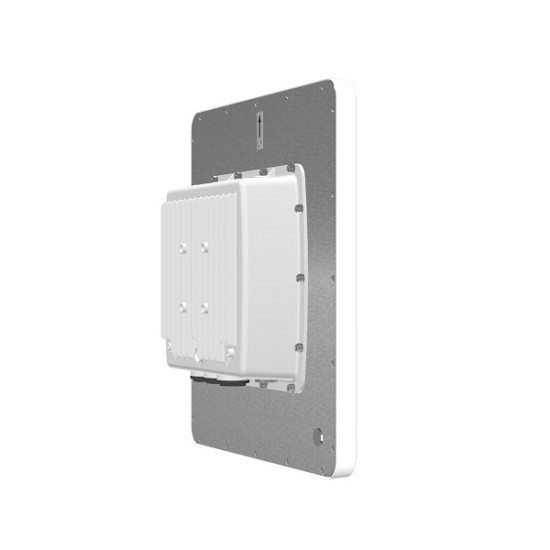

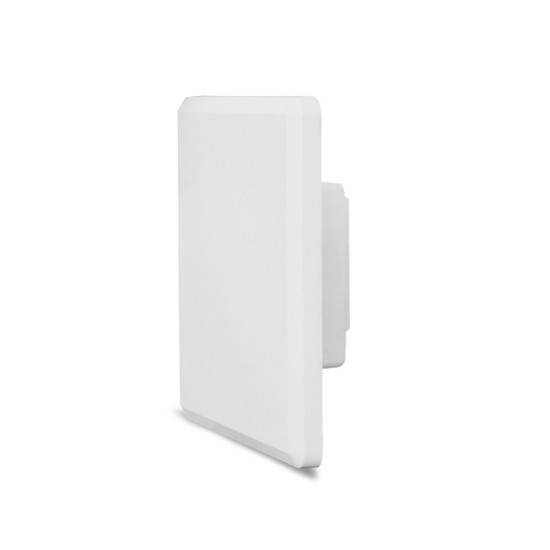

Proxim Tsunami MP-10250-BSX-US Point-to-multiPoint Radio

Proxim Tsunami MP-10250-BSX-US Point-to-multiPoint Radio
  • Model: Tsunami MP-10250-BSX-US
$0.00
Ex Tax: $0.00
Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

Introduction

The Tsunami® MP-10250 BeamX product family uses a beam steering antenna and a secondary, look-ahead scan radio to avoid interference and maximize the use of the available radio spectrum. The Tsunami® 10250, builds on the successful 10000 product line, and is extremely robust in the face of high ambient RF interference delivers more Mbps, and opens up an additional 5GHz spectrum.

The Tsunami® MP-10250-BeamX device supports the following features for applications that include last-mile access or video surveillance, both of which need prioritized and continuous high-speed broadband wireless access.


Certifications




Features

  • IP67
  • MIMO 2x2
  • 16 dBi BeamX antenna
  • Two auto MDI-X RJ45 10/100/1000Mbps Ethernet
  • Base Station Unit

Point-to-Multipoint Radio : Interfaces
Wired Ethernet Two auto MDI-X RJ45 10/100/1000Mbps Ethernet (Port #1 with PoE in & Data, Port #2 with PoE out & Data)
Wireless Protocol WORP® (Wireless Outdoor Router Protocol)
Point-to-Multipoint Radio : Antenna
Beam Width 17° spanning over ± 30° sector
Receive Gain 16 dBi (11 dBi before 5.150 GHz)
Transmit Gain 20 dBi (11 dBi before 5.150 GHz )
Point-to-Multipoint Radio : Radio Specifications
TX Power Up to 28 dBm (dual chain)
MIMO 2x2:2 and 0x2:2 (scan radio)
Modulation OFDM with BPSK, QPSK, QAM16, QAM64, QAM256
Frequency 4.900 – 5.850 GHz (Subject to Country Regulations)
Channel Size 80 MHz, 40 MHz and 20 MHz
Data Rate MCS 0 to 9 with Dynamic Data Rate Selection
TX Power Control 0 - 27 dB, in 1 dB steps. Automatic TPC with configurable EIRP limit
Other Dynamic Channel Selection (DCS) based on interference detection, Dynamic Frequency Selection (DFS) based on radar signature, Automatic Transmit Power Control (ATPC) with EIRP limit support
Point-to-Multipoint Radio : Management
Remote Telnet and SSH, Web GUI and SSL, TFTP, SNMPv3
SNMP SNMP v1-v2c-v3, RFC-1213, RFC-1215, RFC-2790, RFC-2571, RFC-3412, RFC-3414, Private MIB
Other Syslog, sFlow™ agent, SNTP and local time, Spectrum analyzer
Point-to-Multipoint Radio : Standards and Protocols
Synchronization Pass-through IEEE 1588v2 Ethernet Synchronization
Point-to-Multipoint Radio : Security
Encryption AES 128
Authentication Internal MAC Address Control List, Radius based Authentication (with VLAN and QoS provisioning)
Point-to-Multipoint Radio : Network
Modes Bridging, Routing (RIP v2 and IP tunneling)
IP Stack IPv4 and IPv6 simultaneously
Gateway Features DHCP Server & relay, NAT with Std ALGs, PPPoE end point with Proxy DNS
VLAN 802.1Q: Management VLAN. Transparent, Access, Trunk and Mixed mode. QinQ double tagging
Point-to-Multipoint Radio : Power requirements
Input Power 36 to 57 VDC via Ethernet port1 (Power over Ethernet), 12 VDC via Access port, Power should not be provided simultaneously on both ports
Output Power 48 to 57 VDC – 25 Watt on Ethernet port2 (PoE – software controlled), 12 VDC on Access port
Power Consumption 30 Watt typical, 40 Watt maximum
Point-to-Multipoint Radio : Physical characteristics
Safety UL 60950, CAN/CSA-C22.2 No. 60950, IEC 60950, EN 60950 (part -1 and -22)
Temperature OPERATING -40º to 60ºC (-40º to 140º Fahrenheit), STORAGE -50º to 70ºC (-58º to 158º Fahrenheit)
Humidity 100% relative humidity
IP Rating IP67
Dimensions Packaged 18.46 x 7.05 x 21.57 in (469 x 179 x 548 mm)
Dimensions Unpackaged 14 x 14 x 3.40 in (371 x 371 x 85 mm)
Weight (PACKAGED) 13.67 lbs (6.2 kg)
Weight (UNPACKAGED) 7.27 lbs (3.3 kg)
Standards and Certifications USA: FCC 90Y + 15E (UNII 15.247), Canada: IC RSS 102 + RSS 111 + RSS 247, Europe: RED EN 301 489-1 + EN 301-489-17 + EN 301 893 + EN 302 502
Wind Loading 200 km/h (125 mph)
Point-to-Multipoint Radio : Package Checklist
Package Contents One Tsunami® MP-10250-BSX with integrated BeamX antenna and scan radio, One power injector and country specific power cord, One Connector weatherproofing kit (Includes all recommended weatherproofing material), One Wall / Pole mounting kit, One Antenna alignment (RJ11) dongle, One Grounding kit, One Quick Installation Guide
Point-to-Multipoint Radio : General
MTBF 250 000 hours
