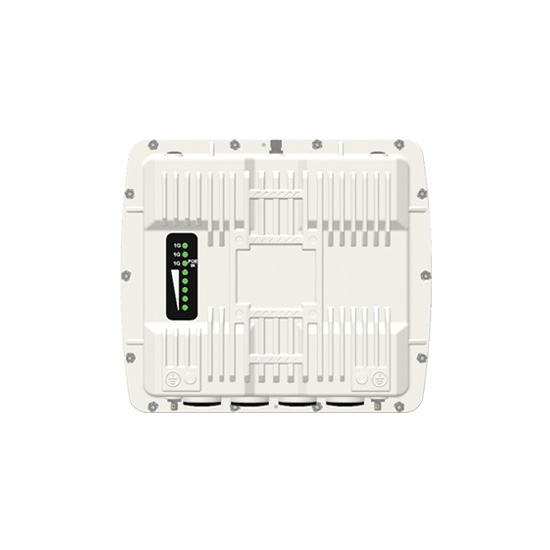

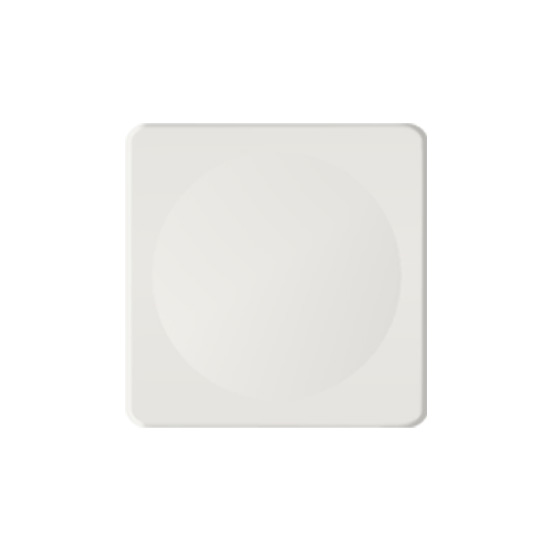

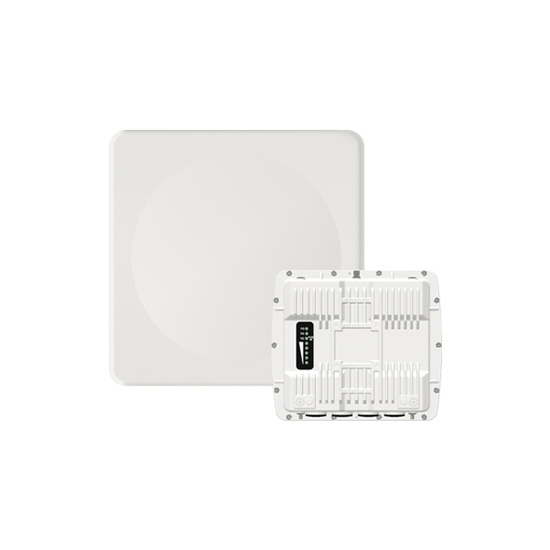

Proxim Stratum SX3-2021A-WD Point-to-Point Radio

Tags: Point-to-Point Radios , Point-to-Point , Radios , Stratum™ X3

Proxim Stratum SX3-2021A-WD Point-to-Point Radio

Model: Stratum SX3-2021A-WD

Proxim

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

Proxim Stratum SX3-2021A-WD FEATURES

Throughput up to 1Gbps
Wide Band Radio - 5.925 – 7.125 GHz
Triple 1Gbps Ethernet with POE in and out
AES 128-bit encryption is upgradeable to 256-bit
20, 40, and 80 MHz channels.
Full tilt and swivel mounting kit included
Dual Polarized 8.5 degree Panel Antenna plus two RP-SMA Connectors

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

Proxim Stratum SX3-2021A-WD INTRODUCTION

The Stratum X3 - 6GHz is a high-performance MIMO 2x2 point-to-point solution capable of throughput up to 1Gbps. It is an excellent long-range backhaul solution. Both integrated and external antenna options enable long-range, high-capacity, secure over-the-air Ethernet transmission. Stratum X3 uses an IP67-rated metal enclosure to ensure years of reliable service in harsh environments, including high winds, high salt, and temperature extremes.
The SX3-2021A is a flexible variant that includes an integrated dual-polarity panel antenna and software-selectable connectors for external antennas.

As an Authorized Distributor of Proxim, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy Proxim Stratum SX3-2021A-WD Point-to-Point Radio online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the Stratum SX3-1021A-WD and Stratum SX3-2020A-WD models in the Proxim Stratum™ X3 Series.

Proxim Stratum SX3-2021A-WD CERTIFICATIONS

Wireless Radio : Interfaces
Ethernet	-
Wired Ethernet	One auto MDI-X RJ45 1 Gbps Ethernet with PoE in, One auto MDI-X RJ45 1 Gbps Ethernet with PoE out, One auto MDI-X RJ45 1 Gbps Ethernet
Wireless Protocol	WORP® (Wireless Outdoor Router Protocol)
Extension	-
Management	-
Wireless Radio : Radio Specifications
Radio Type	point-to-point
MIMO	2x2:2
Modulation	OFDM BPSK-QAM1024
Frequency	5.925 - 7.125 GHz (Subject to Country Regulations
Channel Size	20, 40 and 80 MHz (80+80 and 160 MHz via future upgrade)
Data Rate	-
TX Power	Up to 25 dBm (dual chain)
TX Power Control	0 - 21 dB, in 1 dB steps. Automatic TPC with configurable EIRP limit
Throughput	20 MHz: 223 Mbps, 40 MHz: 435 Mbps, 80 MHz: 755 Mbps
Other	Dynamic Channel Selection (DCS) based on interference detection, Automatic Transmit Power Control (ATPC) with EIRP limit support
Wireless Radio : Antenna
Antenna Type	Integrated 2x2 MIMO 23 dBi dual Polarized 8.5 degree Panel Antenna plus two RP-SMA Connectors (Software switch between integrated antenna and connectors)
Beam Width	-
Receive Gain	-
Transmit Gain	-
Wireless Radio : Network
Modes	Bridging, (Routing to be added by future firmware update)
IP Stack	IPv4 and IPv6 simultaneously
Latency	-
Gateway Features	-
VLAN	802.1Q: Management VLAN. Transparent, Access, Trunk and Mixed mode. QinQ double tagging
Wireless Radio : Management
Remote	Telnet and SSH 2.0, Web GUI and TLS 1.3, TFTP, SNMP v1/v2c/v3
SNMP	SNMP v1/v2c/v3
Bluetooth Low Energy	Proxim BlueConnect™
Multi-Language Support	Web Interface available in English, French, Spanish, and Chinese
Other	Syslog, SNTP and local time, Spectrum analyzer
Wireless Radio : Security
Encryption	AES 128 (AES 256 via license upgrade)
Authentication	Internal MAC Address Control List, Radius based Authentication (with VLAN and QoS provisioning)
802.1X Support	Support
Wireless Radio : Wireless
AP-AP Communications	-
RF Environment	-
Other	-
Wireless Radio : General
MTBF	450000 hours, 2-year warranty, ServPak Extended Support available
Wireless Radio : Power Requirement
Input Power	-
Output Power	-
Power Consumption	14 to 17 W max in MIMO 2x2 mode
Power Standards	802.3at compliant
Wireless Radio : Physical Characteristics
Temperature	OPERATING -40º to 60ºC (-40º to 140º Fahrenheit), STORAGE -50º to 70ºC (-58º to 158º Fahrenheit)
Humidity	100% relative humidity
IP Rating	IP67
Dimensions Packaged	15.27 x 13.62 x 16.85 in (388 x 346 x 428 mm)
Dimensions Unpackaged	9.84 x 8.66 x 2.44 in (250 x 220 x 62 mm)
Weight (PACKAGED)	22.04 lbs (10.0 Kg)
Weight (UNPACKAGED)	3.53 lbs (1.6 Kg)
Standards and Certifications	USA: EMC/EMI: CFR47, FCC part 15, Subpart B (class A) (Pending), Bluetooth: FCC Part 15 Subpart C 15.247,15.205, 15.207 & 15.209 (Pending); CANADA: EMC/EMI: ICES-003 issue 7:2020 (class A) (Pending), Bluetooth: RSS-247 issue 3 & RSS Gen Issue 5 (Pending); EUROPE: EMC/EMI: EN 55032:2015+A1:2020, EN 55035:2017+A11:2020 (Pending); UK: EMC/EMI: BS EN 55032:2015+A1:2020, BS EN 55035:2017+A11:2020 (Pending)
Safety	IEC 62368-1:2018 (Pending), EN IEC 62368-1:2020+A11:2020 (Pending), BS EN IEC 62368-1:2020+A11:2020 (Pending), 68-1:2019, CSA C22.2 No. 62368-1:19 (Pending)
Wind Loading	180 km/h (112.5 mph)
Wireless Radio : Standards and Protocols
Synchronization	-
Wireless Radio : Package Checklist
Package Contents	One Stratum SX3-2021A with integrated antenna plus two RP-SMA connectors, Three RP-SMA weatherproofing caps, Two M25 weatherproofing cable glands, One power injector and country-specific power cord, One full axis mounting kit, One Grounding kit, One Quick Installation Guides
