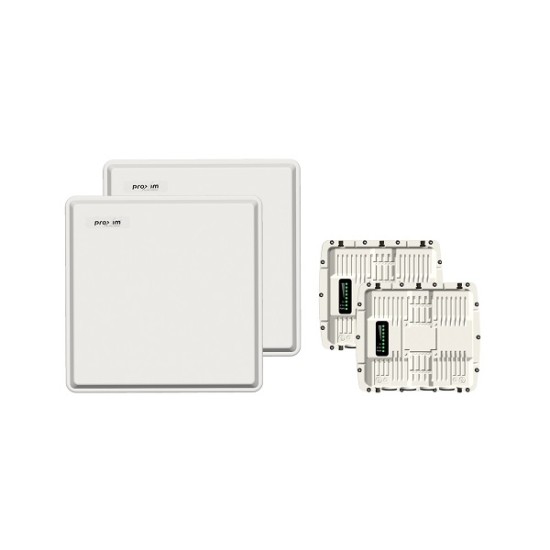

Proxim Stratum SX5-1040A-US Point-to-Point Radio

Proxim Stratum SX5-1040A-US Point-to-Point Radio
  • Model: Stratum SX5-1040A-US
$0.00
Ex Tax: $0.00

Proxim Stratum SX5-1040A-US FEATURES

  • Up to 1.58 Gbps Throughput
  • Wide Band Radio - 5.150 – 5.850 GHz
  • 2.5G Ethernet with optional 10G SFP+ optical transceiver cage
  • AES 128-bit encryption is upgradeable to 256-bit
  • Full tilt and swivel mounting kit included

Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

Proxim Stratum SX5-1040A-US INTRODUCTION

The Stratum™ X5 is the first in a new series of ultra-high-performance point-to-point and point-to-multipoint radio endpoints. The Stratum™ X5 is a 5 GHz, MIMO 4x4 point-to-point radio with greater than 1.5 Gbps throughput and is ideally suited to high-capacity backhaul applications. Model SX5-1040A is a connectorized unit purpose-built for external quad polarity antennas where specific antenna patterns or gain adjustments are needed.

As an Authorized Distributor of
Proxim, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy Proxim Stratum SX5-1040A-US Point-to-Point Radio online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the Stratum SX5-1040A-WD and Stratum SX5-1042A-US models in the Proxim Stratum™ X5 Series.

Proxim Stratum SX5-1040A-US CERTIFICATIONS

Wireless Radio : Interfaces
Ethernet -
Wired Ethernet One auto MDI-X RJ45 2.5 Gbps Ethernet with US PoE in One auto MDI-X RJ45 1 Gbps Ethernet with US PoE out
Wireless Protocol WORP® (Wireless Outdoor Router Protocol)
Extension -
Management -
Wireless Radio : Radio Specifications
Radio Type point-to-point
MIMO 2×2:2 and 4×4:4
Modulation OFDM BPSK-QAM1024
Frequency 5.150 – 5.925 GHz (Subject to Country Regulations)
Channel Size 20, 40 and 80 MHz (80+80 and 160 MHz via future upgrade)
Data Rate -
TX Power Up to 26 dBm (dual chain) or 29 dBm (quad chain)
TX Power Control 0 – 21 dB, in 1 dB steps. Automatic TPC with configurable EIRP limit
Throughput Dual Stream: 20 MHz: 223 Mbps, 40 MHz: 435 Mbps, 80 MHz: 755 Mbps; Quad Stream: 20 MHz: 442 Mbps, 40 MHz: 820 Mbps, 80 MHz: 1581 Mbps
Other Dynamic Channel Selection (DCS) based on interference detection, Dynamic Frequency Selection (DFS) based on radar signature, Automatic Transmit Power Control (ATPC) with EIRP limit support
Wireless Radio : Antenna
Antenna Type Four RP-SMA Connectors
Beam Width -
Receive Gain -
Transmit Gain -
Wireless Radio : Network
Modes Bridging, (Routing to be added by future firmware update)
IP Stack IPv4 and IPv6 simultaneously
Latency -
Gateway Features -
VLAN 802.1Q: Management VLAN. Transparent, Access, Trunk and Mixed mode. QinQ double tagging
Wireless Radio : Management
Remote Telnet and SSH 2.0, Web GUI and TLS 1.3, TFTP, SNMP v1/v2c/v3
SNMP SNMP v1/v2c/v3
Bluetooth Low Energy Proxim BlueConnect™
Multi-Language Support Web Interface available in English, French, Spanish, and Chinese
Other Syslog, SNTP and local time, Spectrum analyzer
Wireless Radio : Security
Encryption AES 128 (AES 256 via license upgrade)
Authentication Internal MAC Address Control List, Radius-based Authentication (with VLAN and QoS provisioning)
802.1X Support Support
Wireless Radio : Wireless
AP-AP Communications -
RF Environment -
Other -
Wireless Radio : General
MTBF 450 000 hours, 2-year warranty, ServPak Extended Support available.
Wireless Radio : Power Requirement
Input Power -
Output Power -
Power Consumption 25 W typical in MIMO 4×4 mode
Power Standards 802.3at/bt compliant
Wireless Radio : Physical Characteristics
Temperature OPERATING -40º to 60ºC (-40º to 140º Fahrenheit), STORAGE -50º to 70ºC (-58º to 158º Fahrenheit)
Humidity 100% relative humidity
IP Rating IP67
Dimensions Packaged 15.27 x 13.62 x 16.85 in (388 x 346 x 428 mm)
Dimensions Unpackaged 9.84 x 8.66 x 2.44 in (250 x 220 x 62 mm)
Weight (PACKAGED) 22.04 lbs (10.0 Kg)
Weight (UNPACKAGED) 3.53 lbs (1.6 Kg)
Standards and Certifications USA: FCC part 15B class A (EMC), part 15C (Bluetooth) and part 15E (5 GHz radio) CANADA: RSS-247 issue 2, RSS-102 issue 5, ICES-003 issue 7 Europe: RSS-247 issue 2, RSS-102 issue 5, ICES-003 issue 7
Safety IEC 62368-1:2014 & 60950-22:2016 CAN/CSA C22.2 No 62368-1:14 & No 60950-22:17 EN 62368-1:2014 + A11:2017 & 60950-22:2017
Wind Loading 180 km/h (112.5 mph)
Wireless Radio : Standards and Protocols
Synchronization -
Wireless Radio : Package Checklist
Package Contents One Stratum SX5-1040A unit with four RP-SMA connectors, Three (SX5-1040A) RP-SMA weather proofing caps, Two M25 weather proofing cable glands, One power injector and country-specific power cords, One full-axis mounting kits, One Grounding kits, One Quick Installation Guides
