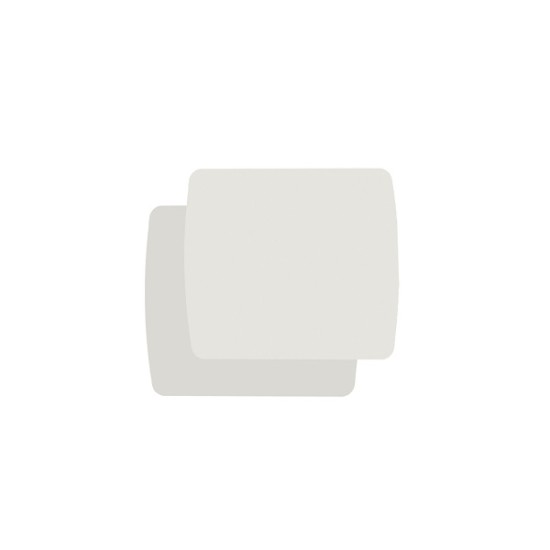

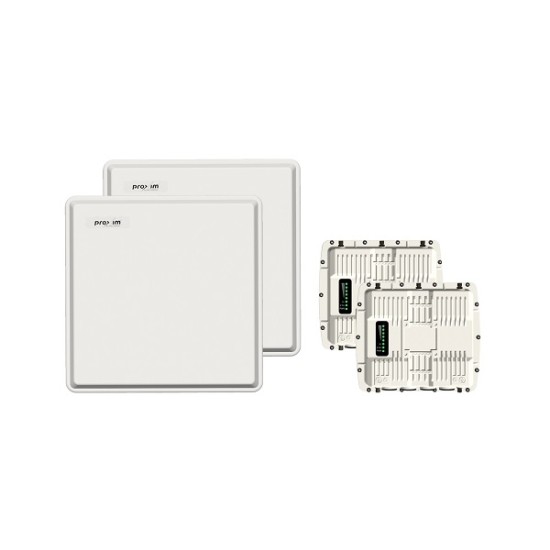

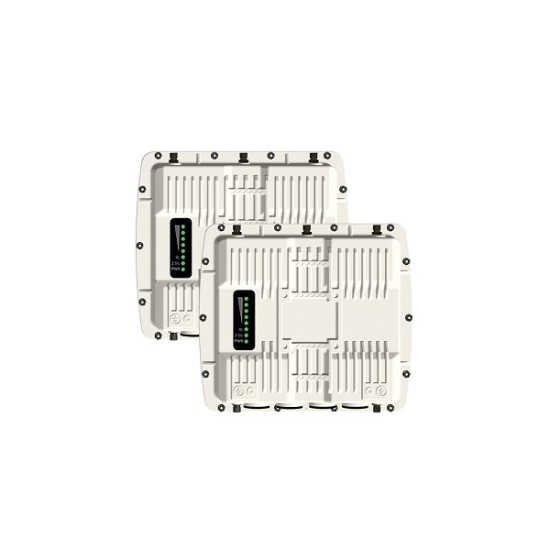

Proxim Stratum SX5-1042A-US Point-to-Point Radio








- Model: Stratum SX5-1042A-US
Proxim Stratum SX5-1042A-US FEATURES
- Up to 1.58 Gbps Throughput
- Wide Band Radio - 5.150 – 5.850 GHz
- 2.5G Ethernet with optional 10G SFP+ optical transceiver cage
- AES 128-bit encryption is upgradeable to 256-bit
Full tilt and swivel mounting kit included




Proxim Stratum SX5-1042A-US INTRODUCTION
The Stratum™ X5 is the first in a new series of ultra-high-performance point-to-point and point-to-multipoint radio endpoints. The Stratum™ X5 is a 5 GHz, MIMO 4x4 point-to-point radio with greater than 1.5 Gbps throughput and is ideally suited to high-capacity backhaul applications. Model SX5-1040A is a connectorized unit purpose-built for external quad polarity antennas where specific antenna patterns or gain adjustments are needed.
As an Authorized Distributor of Proxim, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy Proxim Stratum SX5-1042A-US Point-to-Point Radio online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the Stratum SX5-1040A-WD and Stratum SX5-1040A-US models in the Proxim Stratum™ X5 Series.
Proxim Stratum SX5-1042A-US CERTIFICATIONS
Wireless Radio : Interfaces | |
Ethernet | - |
Wired Ethernet | One auto MDI-X RJ45 2.5 Gbps Ethernet with US PoE in One auto MDI-X RJ45 1 Gbps Ethernet with US PoE out |
Wireless Protocol | WORP® (Wireless Outdoor Router Protocol) |
Extension | - |
Management | - |
Wireless Radio : Radio Specifications | |
Radio Type | point-to-point |
MIMO | 2×2:2 and 4×4:4 |
Modulation | OFDM BPSK-QAM1024 |
Frequency | 5.150 – 5.925 GHz (Subject to Country Regulations) |
Channel Size | 20, 40 and 80 MHz (80+80 and 160 MHz via future upgrade) |
Data Rate | - |
TX Power | Up to 26 dBm (dual chain) or 29 dBm (quad chain) |
TX Power Control | 0 – 21 dB, in 1 dB steps. Automatic TPC with configurable EIRP limit |
Throughput | Dual Stream: 20 MHz: 223 Mbps, 40 MHz: 435 Mbps, 80 MHz: 755 Mbps; Quad Stream: 20 MHz: 442 Mbps, 40 MHz: 820 Mbps, 80 MHz: 1581 Mbps |
Other | Dynamic Channel Selection (DCS) based on interference detection, Dynamic Frequency Selection (DFS) based on radar signature, Automatic Transmit Power Control (ATPC) with EIRP limit support |
Wireless Radio : Antenna | |
Antenna Type | Integrated 4×4 MIMO 18 dBi Quad Polarized 19 degree Panel Antenna plus Four RP-SMA Connectors |
Beam Width | - |
Receive Gain | - |
Transmit Gain | - |
Wireless Radio : Network | |
Modes | Bridging, (Routing to be added by future firmware update) |
IP Stack | IPv4 and IPv6 simultaneously |
Latency | - |
Gateway Features | - |
VLAN | 802.1Q: Management VLAN. Transparent, Access, Trunk and Mixed mode. QinQ double tagging |
Wireless Radio : Management | |
Remote | Telnet and SSH 2.0, Web GUI and TLS 1.3, TFTP, SNMP v1/v2c/v3 |
SNMP | SNMP v1/v2c/v3 |
Bluetooth Low Energy | Proxim BlueConnect™ |
Multi-Language Support | Web Interface available in English, French, Spanish, and Chinese |
Other | Syslog, SNTP and local time, Spectrum analyzer |
Wireless Radio : Security | |
Encryption | AES 128 (AES 256 via license upgrade) |
Authentication | Internal MAC Address Control List, Radius-based Authentication (with VLAN and QoS provisioning) |
802.1X Support | Support |
Wireless Radio : Wireless | |
AP-AP Communications | - |
RF Environment | - |
Other | - |
Wireless Radio : General | |
MTBF | 450 000 hours, 2-year warranty, ServPak Extended Support available. |
Wireless Radio : Power Requirement | |
Input Power | - |
Output Power | - |
Power Consumption | 25 W typical in MIMO 4×4 mode |
Power Standards | 802.3at/bt compliant |
Wireless Radio : Physical Characteristics | |
Temperature | OPERATING -40º to 60ºC (-40º to 140º Fahrenheit), STORAGE -50º to 70ºC (-58º to 158º Fahrenheit) |
Humidity | 100% relative humidity |
IP Rating | IP67 |
Dimensions Packaged | 16.34 x 16.34 x 16.85 in (415 x 415 x 485 mm) |
Dimensions Unpackaged | 14.60 x 14.60 x 3.82 in (371 x 371 x 97 mm) |
Weight (PACKAGED) | 30.42 lbs (13.8 kg) |
Weight (UNPACKAGED) | 6.61 lbs (3.0 kg) |
Standards and Certifications | USA: FCC part 15B class A (EMC), part 15C (Bluetooth) and part 15E (5 GHz radio) CANADA: RSS-247 issue 2, RSS-102 issue 5, ICES-003 issue 7 Europe: RSS-247 issue 2, RSS-102 issue 5, ICES-003 issue 7 |
Safety | IEC 62368-1:2014 & 60950-22:2016 CAN/CSA C22.2 No 62368-1:14 & No 60950-22:17 EN 62368-1:2014 + A11:2017 & 60950-22:2017 |
Wind Loading | 180 km/h (112.5 mph) |
Wireless Radio : Standards and Protocols | |
Synchronization | - |
Wireless Radio : Package Checklist | |
Package Contents | One Stratum SX5-1042A with integrated antenna plus four RP-SMA connectors, Five (SX5-1042A) RP-SMA weather proofing caps, Two M25 weather proofing cable glands, One power injector and country-specific power cords, One full-axis mounting kits, One Grounding kits, One Quick Installation Guides |
