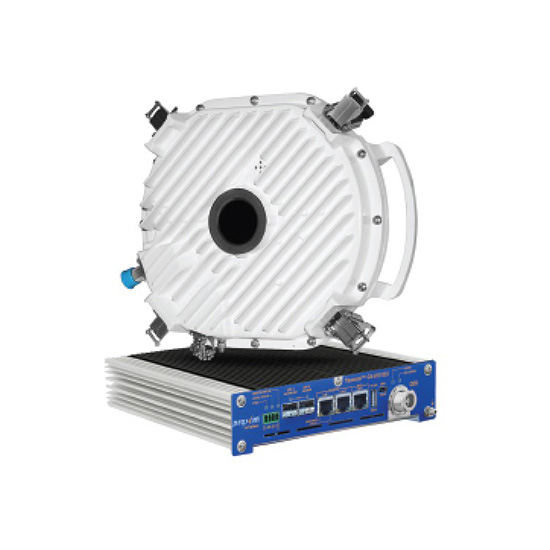

Proxim Tsunami GX-810-23LK Point-to-Point Radio

Tags: Point-to-Point Radios , Point-to-Point , Radios , Tsunami GX-810

Model: Tsunami GX-810-23LK

Proxim

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

Proxim Tsunami GX-810-23LK FEATURES

QAM 256 modulation with a 60 MHz channel provides up to 730 Mbps throughput
True 2+0 IDU aggregation doubles ethernet capacity and delivers up to 1460 Mbps throughput
Up to 30 dBm transmit power reaches longer distances without the need for extra-large antennas
AES 128 and 256 encryption guarantees data confidentiality

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

Proxim Tsunami GX-810-23LK INTRODUCTION

Tsunami® GX-810 is a high-throughput, extremely reliable, cost-effective, all-outdoor, unlicensed point-to-point (PtP) microwave solution operating in the 24 GHz band. With a capacity of up to 900 Mbps full-duplex (1.8 Gbps aggregate), hitless ACM, and modulation schemes up to 1024QAM, Tsunami® GX-824 brings a new dimension to the microwave links market and can be used as an adequate alternative to 60 GHz and 80 GHz millimeter wave links.

As an Authorized Distributor of Proxim, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy Proxim Tsunami GX-810-23LK Point-to-Point Radio online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the Tsunami GX-810-18LK and Tsunami GX-810-15LK models in the Proxim Tsunami GX-810 Series.

Wireless Radio : Interfaces
Ethernet	Two Gigabit Ethernet 1000Mbps Base T (RJ45) ports with 10k jumbo frame support and two SFP slots for additional port extension (1000Base-SX/LX)
Wired Ethernet	-
Wireless Protocol	-
Extension	-
Management	One Gigabit Ethernet 1000Mbps Base T (RJ45) port and two USB ports (one for management, one for firmware upgrade)
Wireless Radio : Radio Specifications
Radio Type	Point-to-Point
MIMO	-
Modulation	QPSK, 8PSK, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM with Hitless adaptive modulation, asymmetrical modulation
Frequency	±5 ppm
Channel Size	10MHz to 60MHz
Data Rate	-
TX Power	Up to 30 dBm (dual chain) or 26 dBm (quad chain)
TX Power Control	0.5 dBm Steps. Automatic TPC
Throughput	365 Mbps full duplex (730 Mbps accurate aggregate)
Other	-
Wireless Radio : Antenna
Antenna Type	Wave Guide port and antenna direct mount buckle
Beam Width	-
Receive Gain	-
Transmit Gain	-
Wireless Radio : Network
Modes	Bridging and NAT routing. Up to four independent traffic channels over the air
IP Stack	-
Latency	100 μs – 400 μs
Gateway Features	-
VLAN	802.1Q (4096 VLAN IDs). Transparent, Trunk, Access, or Hybrid mode
Wireless Radio : Management
Remote	In-Band or Out-of-Band: Telnet and SSH, Web GUI HTTP and SSL - HTTPS, SNMPv3
SNMP	SNMP v1-v2c-v3, RFC-1213, RFC-1215, RFC-2790, RFC-2571, RFC-3412, RFC-3414, Private MIB
Bluetooth Low Energy	-
Multi-Language Support	-
Other	Spectrum analyzer
Wireless Radio : Security
Encryption	AES 128/256 bits
Authentication	-
802.1X Support	Not Supported
Wireless Radio : Wireless
AP-AP Communications	-
RF Environment	-
Other	-
Wireless Radio : General
MTBF	-
Wireless Radio : Power Requirement
Input Power	-48 VDC
Output Power	25 W
Power Consumption	up to 22 W
Power Standards	-
Wireless Radio : Physical Characteristics
Temperature	-33 to +55ºC
Humidity	95% (non-condensing)
IP Rating	-
Dimensions Packaged	10.9 x 9.4 x 3.6 in
Dimensions Unpackaged	10.0 x 1.73 x 9.45 in
Weight (PACKAGED)	≤ 9.5 lbs
Weight (UNPACKAGED)	4.6 lbs
Standards and Certifications	-
Safety	-
Wind Loading	-
Wireless Radio : Standards and Protocols
Synchronization	Sync ETH and IEEE 1588 PTP
Wireless Radio : Package Checklist
Package Contents	Two Tsunami® GX-810 ODU, Two rack mounting kits for IDU, Two grounding kits for IDU, Two Tsunami® GX-810 IDU, Two Ethernet cables for IDU, One Quick Installation Guide
