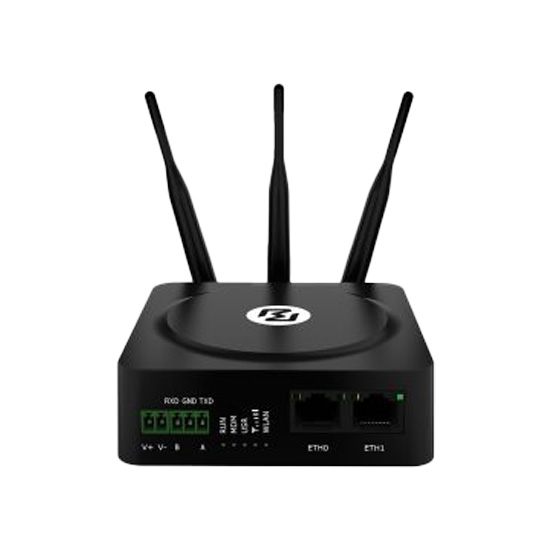

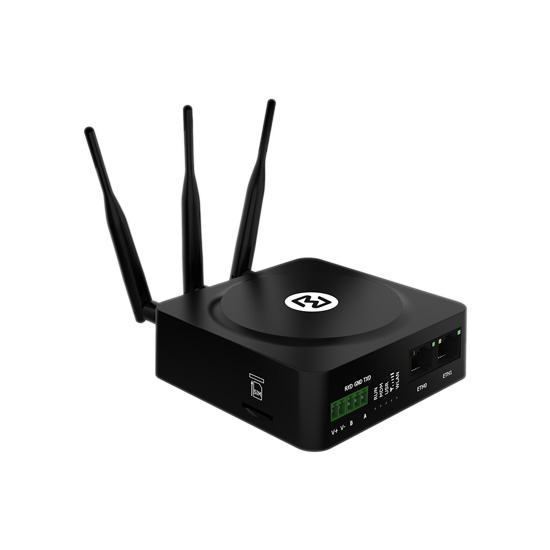

ROBUSTEL R1511-4L-A04JP-B Dual Ethernet Router

ROBUSTEL R1511-4L-A04JP-B Dual Ethernet Router
  • Model: R1511-4L-A04JP-B
$0.00
Ex Tax: $0.00

ROBUSTEL R1511-4L-A04JP-B FEATURES

  • Serial Port: RS485
  • Country/Region: Japan
  • Telec, JATE Certification
  • Modbus RTU to Modbus TCP Gateway built-in
  • Ethernet, Wifi, and 4G internet connection options with auto-failover
  • Free cloud management platform – RCMS
  • Fully programmable Linux environment with excellent SDK Documentation
  • RobustVPN provides a fixed IP address on ANY SIM card
  • Full SMS control for diagnosis and recovery from data network problems
  • Very small footprint for space-constrained applications
  • Wall-mount and DIN-rail mounting options are available
Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

ROBUSTEL R1511-4L-A04JP-B INTRODUCTION

Robustel’s R1511 router is a Dual Ethernet port (LAN + WAN) 2G/3G/4G/LTE router with advanced software functions at a very competitive price point. The R1511 is a sister product of the R1510 series offering a choice of (3-wire) RS232 or (2-wire) RS485 INSTEAD of the Digital Input and Digital Output found on the R1510 series. This means that RS232 and RS485 devices, including Modbus RTU equipment, can connect to the internet directly through the R1511 router. Ethernet port zero can be independently configured as WAN, LAN1, or LAN2, and Ethernet port one as LAN1 or LAN2.

The R1511 has many unique software innovations including, but not limited to:

RobustVPN – innovative use of Open VPN tunneling to provide a fixed IP address on ANY SIM Card.

RCMS – Robustel’s Cloud management platform is essential for managing an estate of routers. The basic version is FREE.

Data Guard – critical ‘failsafe’ that stops unexpected data over usage within seconds of a threshold being breached.

Smart Reboot – essential backup solution for when your roaming SIM card doesn’t roam!

As an Authorized Distributor of ROBUSTEL, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy ROBUSTEL R1511-4L-A04JP-B Dual Ethernet Router online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the R1511-4L-A04JP-A and R1511-4L-A02EU-A models in the ROBUSTEL R1511 Series.

ROBUSTEL R1511-4L-A04JP-B CERTIFICATIONS



3G Modem : Interface
SIM card slot 1 Mini SIM (2 FF)
Ethernet Ports 2 x 10/100 Mbps, 2 x LAN or 1 x LAN + 1 x WAN
USB -
Digital Input and Output -
Serial port 1 x RS485
Alert Output -
Cellular Standards No
Band Options 4G: LTE FDD: B1/B3/B8/B18/B19/B26; LTE TDD: B41, 3G: WCDMA: B1/B6/B8/B19
Cellular Antenna Connectors SMA-K
WLAN Standards 802.11 b/g/n, supports AP and Client modes
WLAN Antenna Connector RP-SMA-K (External antenna)
GPS Antenna Connector No
3G Modem : Radio specifications
Radio Connection type No
Maximum data transfer speed of 2G -
Maximum data transfer speed of 3G -
Maximum data transfer speed of 4G -
WiFi Radio Frequency No
3G Modem : Software Specifications
VPN IPsec, OpenVPN, GRE, Wireguard
Firewall DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Management Web, CLI, SMS
Routing Redundancy -
Time Management -
3G Modem : Standards and protocols
Protocols PPPoE, TCP, UDP, DHCP, NAT, DNS, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc.
3G Modem : Features and capabilities
Send and receive SMS Yes
3G Modem : Security
Security and Encryption WEP, WPA, WPA2, WPA3/64/128 AES, TKIP
Authentication -
3G Modem : Power Requirements
Power Connector 2-pin 3.5 mm female socket
Power Consumption (Output Adapter) Idle: 100mA @12 V, Data Link: 500mA (Peak) @12 V
Input Voltage 9 to 36 VDC
POE Support No
Input Current -
Reverse Polarity Protection No
3G Modem : Buttons
Power button No
Reset 1 x RST
3G Modem : LED Indicators
MTBF -
Operating mode Cellular VPN Router
LED Indicators 1 x RUN, 1 x MDM, 1 x USR, 1 x RSSI, 1 x WLAN
3G Modem : Physical Characteristics
Dimensions 91.5 x 91.5 x 31.5 mm
Installations Desktop, wall mounting, and 35 mm DIN rail mounting
Housing Plastic
Weight 150 g
Operating Temperature -25 to 70 °C
Storage Humidity -
Storage Temperature -40 to 85 °C
Type of Use Environmental
Standards and Certifications EMI, EMS, Telec, JATE
